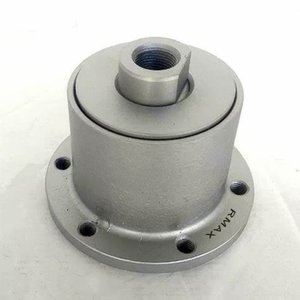

IL50A-120/4H-M20 Agri Hub bearing Unit for Disc Harrow
RMAX
8482
| Quantity: | |
|---|---|
Outside diameter 145 mm
Pitch circle diameter 120 mm
Hole/Thread 4*11 mm
Bore diameter 34 mm
D-shape hole cut out dimension 31 mm
Thread M20 mm
Total length 100 mm
Length of D shape 14 mm
Length of threaded part 55 mm
Total flange length 60 mm
kg 3.23 kg
Basic dynamic load rating 60 kN
Basic static load rating 45.8 kN
Fatigue load limit 1.92 kN
Application For Disc Harrow
Packing Detials：Industrial packing, Single box, or as customer's request
Outside diameter 145 mm
Pitch circle diameter 120 mm
Hole/Thread 4*11 mm
Bore diameter 34 mm
D-shape hole cut out dimension 31 mm
Thread M20 mm
Total length 100 mm
Length of D shape 14 mm
Length of threaded part 55 mm
Total flange length 60 mm
kg 3.23 kg
Basic dynamic load rating 60 kN
Basic static load rating 45.8 kN
Fatigue load limit 1.92 kN
Application For Disc Harrow
Packing Detials：Industrial packing, Single box, or as customer's request
