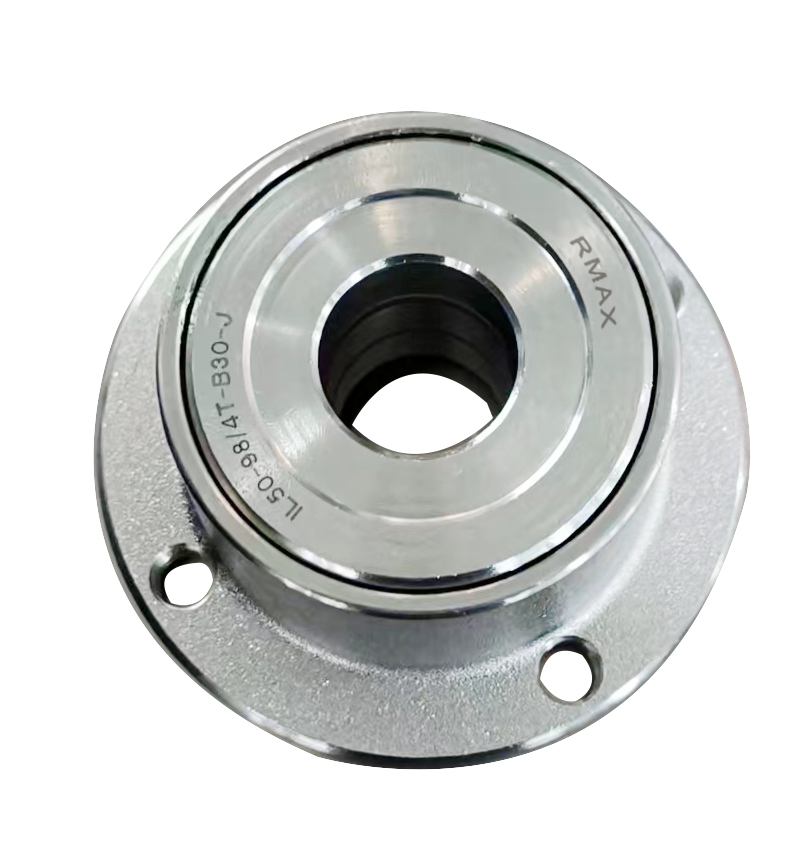

    IL50-98/4T-B30-J Agri Hub Bearing Unit for Disc Cultivator And Pneumatic Seed Drill Disc Harrow/ for Väderstad Disc Harrow

    Bearing Number：IL50-98/4T-B30-J
    Material：Flange：55#
                     Bearing： Gcr15
    Certification： ISO9001/TS16949
    Country of Origin： CHINA


    • IL50-98/4T-B30-J

    • RMAX

    • 8482

    Availability:
    Quantity:
    Inquire Add to Basket

    IL50-98/4T-B30-J Agri Hub Bearing Unit for Disc Cultivator And Pneumatic Seed Drill  Disc Harrow/ for Väderstad Disc Harrow

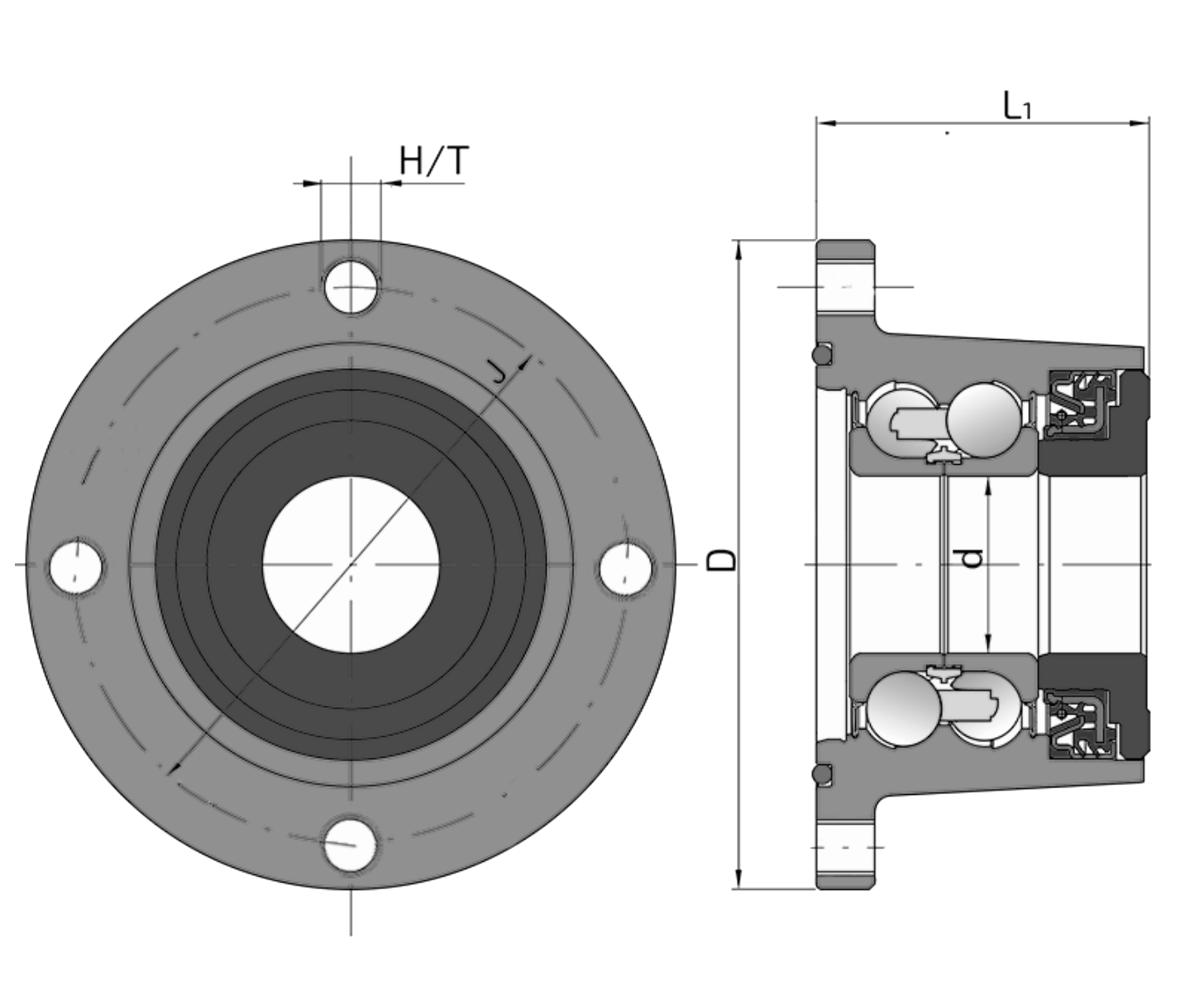

    Technical Specification

    IL50-98:4T-B30-J_副本

    J Pitch circle diameter 98 mm
    D Outside diameter 117 mm
    H/T Hole/Thread 4xM12x1.25 mm
    d Bore diameter 30 mm
    L1 Total flange length 60 mm
    Pu Fatigue load limit 1.92 kN


    Basic dynamic load rating                 60 kN

    Basic static load rating                      45.8 kN

    Weight                                              1.96 kg

    Product Packing & Delivery

    Packing Detials：Industrial packing, Single box, or as customer's request

    Delivery Detail：Be Allowed By Sea,By Air,By Rallway Or Express.


    IL50-98/4T-B30-J Agri Hub Bearing Unit for Disc Cultivator And Pneumatic Seed Drill Disc Harrow IL50-98/4T-B30-J Agri bearing IL50-98/4T-B30-J IL50-98/4T-B30-J for Väderstad Disc Harrow Disc Harrow bearing IL50-98/4T-B30-J Disc bearing IL50-98/4T-B30-J Hub assembly IL50-98/4T-B30-J IL50-98/4T-B30-J Agri Hub Bearing
