PL-127
RMAX
8482
| Quantity: | |
|---|---|

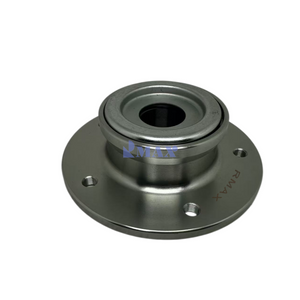

PL-127 Agri Hub Bearing Unit use excellence material (55# Steel, 40Cr, and GCr15)
The internal design improves actual load capacity while maintaining structural integrity.
Using international brand oils.
Surface treatment will be customized according to customer requirements, including galvanizing, electrophoresis, and powder coating.
More than 1 million sets of agricultural machinery bearings have been verified by users to have an actual life is over 3000 hectares
We can provide suitable bearings recommendations and customized development based on load requirements and installation dimensions.
The drawing design is available.
This structure of agricultural machinery unit from rmax can completely improves farm productivity and no need to re lubricate.
At the same time, it can reduce the impact on the environment.
More convenient to install/replace.
Outside diameter 127.3 mm
Shaft outside diameter 64.2mm
Counterbore dimension 55.7 mm
Pitch circle diameter 106 mm
Hole/Thread M12 mm
Internal Thread 2*M20 mm
Distance between holes 38mm
Total length 106.5 mm
Length of threaded part 25 mm
Counterbore depth 2 mm
Basic dynamic load rating 48.8 kN
Basic static load rating 35.3 kN
Fatigue load limit 1.483kN
Weight 3.81 kg
Application For Disc Harrow
Packing Detials：Industrial packing, Single box, or as customer's request
